770L BLUE PLASTIC WASTE CONTAINER WITH FOOT PEDAL

Other Options

770L GREEN PLASTIC WASTE CONTAINER WITH FOOT PEDAL

770L ORANGE PLASTIC WASTE CONTAINER WITH FOOT PEDAL

770L RED PLASTIC WASTE CONTAINER WITH FOOT PEDAL

770L GREY PLASTIC WASTE CONTAINER WITH FOOT PEDAL

770L YELLOW PLASTIC WASTE CONTAINER WITH FOOT PEDAL

Ref. 011.00095

Description

• Manufactured from HDPE using the injection moulding method and 100% virgin raw material
• Compatible with EN 840 2-5-6
• Smooth surface for easy cleaning
• Resistant to UV, cold, heat, and chemicals
• Lid opener 270 degree and fixed through two metal pins
• Print area on body and lid
• Ø 200 mm wheels, 2 with breaks
• Designed to accommodate data carriers
• Compatible with standard lifting equipment

Technical Features

CAPACITY: 770L
LENGTH: 1380mm
WIDTH: 780mm
HEIGHT: 1270mm
WEIGHT: 41kg
MAXIMUM PLAYLOAD: 310kg

Lid Standard Colors

Body Standard Colors

Request a Quote

TECHNICAL FEATURES

Capacity

Length

Lid Length

Base Length

Height

Height Without Lid

Width

Lid Width

Width Between Axes

Width Between Wheels

Ø Wheels

Weight

Dynamic Load

770l

1380mm

1223mm

1145mm

1270mm

1180mm

780mm

752mm

625mm

490mm

200mm

41kg

310kg

EXTRA OPTIONS

Hot stamping

Screen printing

Lid in lid

Galvanized metal handel

Evacution hole

LOGISTIC DATA

20'DC	40'DC	40'HC	Truck 90 cbm
65 un	135 un	135 un	180 un

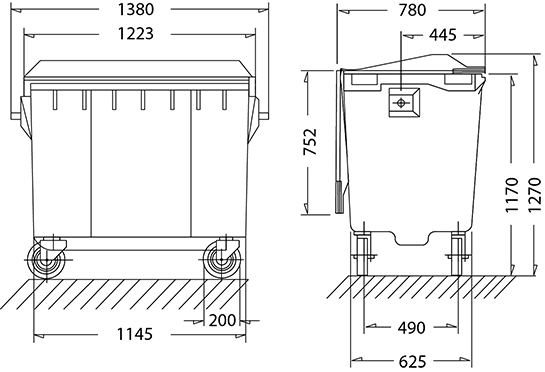

TECHNICAL DRAWING

770l WASTE PLASTIC CONTAINER

ADVANTAGES

Norm EN 840-2-5-6

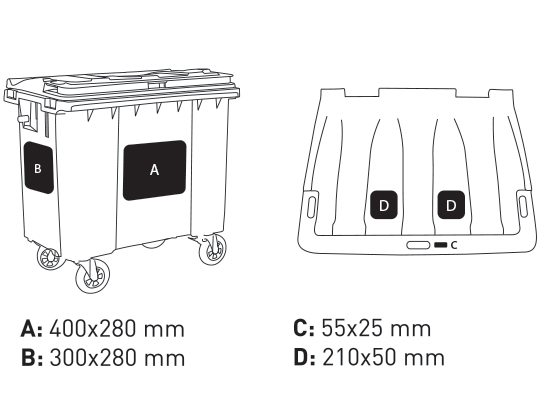

Print area on body and lid

Designed to accommodate data carriers

Compatible with standard lifting equipment

RECOMMENDATIONS FOR USE

Do not exceed recommended dynamic load
